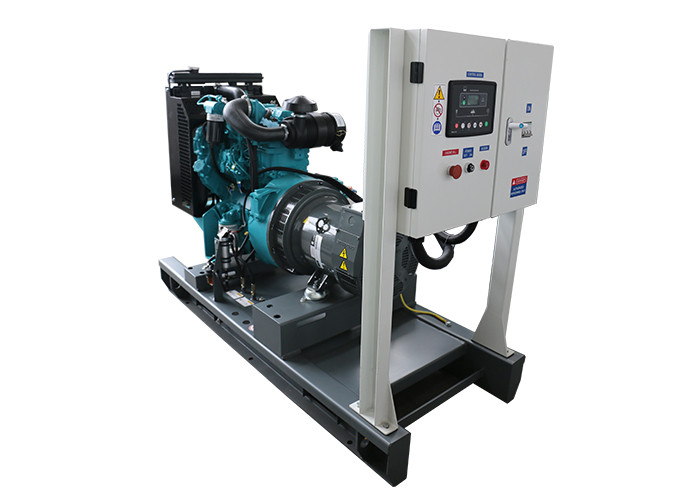

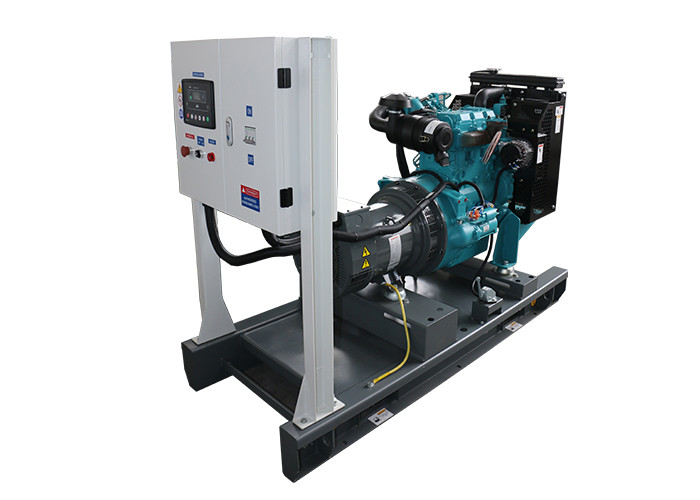

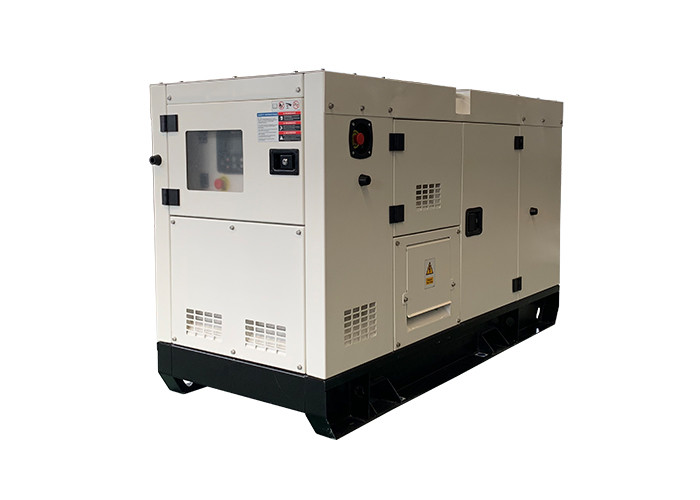

Canopy 20kw UK Perkins Diesel Generator Rainproof Generating 25kva

1 SET
MOQ
Negotiation
قیمت
Canopy 20kw UK Perkins Diesel Generator Rainproof Generating 25kva
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Output Power: 20KW 25KVA
Frequency: 50/60HZ
Voltage: 220v - 690v optional
Engine: Cummins, Perkins, Deutz, Iveco, Chinese brand for optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea, Smartgen, Harsen for optional
MCCB: ABB or Delixi
Cooling system: Water cooled
Genset type: Open type, Silent type, Container type, Trailer type for optional
ATS: Optional
برجسته:

open type genset,water cooled generator

,

water cooled generator

اطلاعات اولیه
Place of Origin: Jiangsu of China
نام تجاری: GPRO
گواهی: ISO,CE Certification
Model Number: PF-P28S
پرداخت
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
توضیحات محصول

Canopy type 20kw UK Perkins Power Diesel Generator Rainproof Generating 25kva

Model PF-P28S
Rated output(KW) 20kw/25kva
Max.output(KVA)  22kw/28kva
Frequency(HZ) 50
Rated voltage(V) 230/400
Rated current(A) 54.1
Engine Model Perkins 404D-22TG
Cylinder number 4
bore*stroke(mm) 100*115
Fuel consumption(g/kw.h)at full load 230
Compression ratio 19:01
Starting system Electric starter
Rated Rotation Speed(rpm) 1500
Power factor Cos% 0.8
Insulation grade H
Excitation mode self-excitation and cinstant voltage(AVR)
Diamension(L*W*H) 2190*1050*1340
net weight(KG) 1000



Canopy 20kw UK Perkins Diesel Generator Rainproof Generating 25kva 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional

Canopy 20kw UK Perkins Diesel Generator Rainproof Generating 25kva 1

Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
