Water Cooled Compact Design Cummins Power Generator Hotel Diesel Generators

1 sets
MOQ
negotiation
قیمت
Water Cooled Compact Design Cummins Power Generator Hotel Diesel Generators
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Cooling System: Water cooled
Fuel Tank: 8 hours running
Speed Govern: Electronic
Speed: 1500rpm
Conditions Of Use: Land Use
برجسته:

,اضطراری دیزل ژنراتور

,

emergency diesel generator

اطلاعات اولیه
Place of Origin: China, Wuxi
نام تجاری: GPRO
گواهی: CE, ISO
Model Number: PF-DC
پرداخت
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
توضیحات محصول

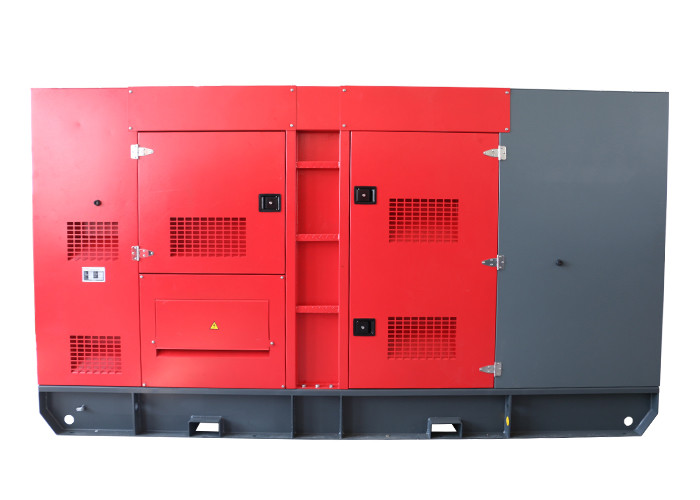

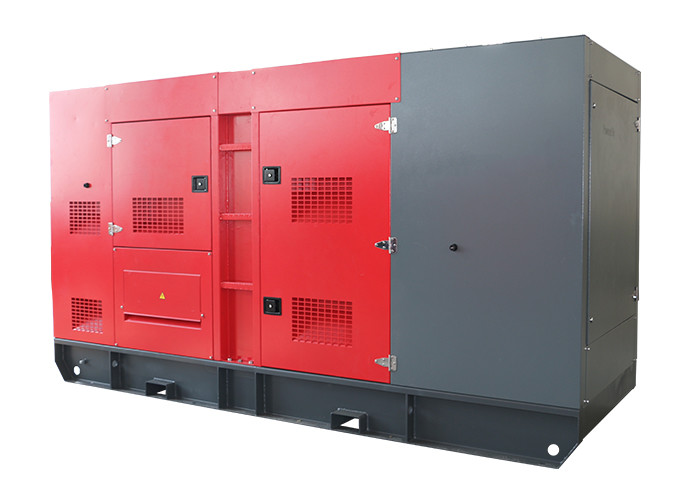

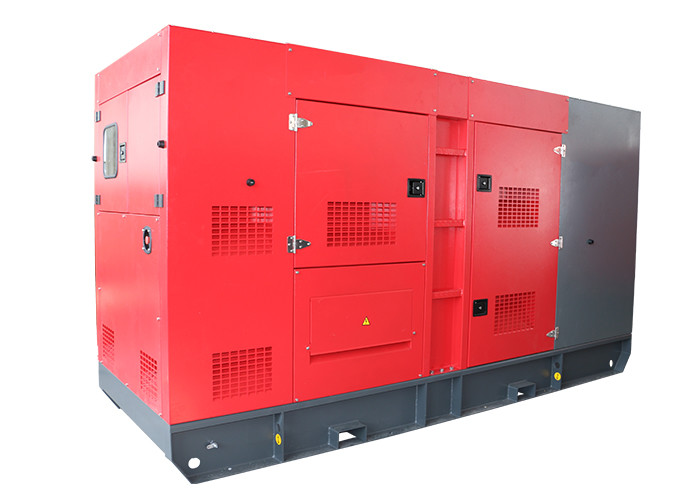

Water Cooled Compact Design Cummins Diesel Generators For Hotel Use





Generator soundproof/Silent and canopy



1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Genset Spes:

Genset Model Prime Power Standby Power Engine
KVA KW KVA KW Model NO.Cylinder Governor
PF-DC22 20 16 22 17.6 4B3.9-G1 4.L M
PF-DC28 25 20 27.5 22 4B3.9-G1 4.L M
PF-DC33 30 24 33 26.4 4BT3.9-G1 4.L M
PF-DC41 37.5 30 41.25 33 4BT3.9-G1 4.L M
PF-DC44 40 32 44 35.2 4BT3.9-G1 4.L M
PF-DC55 50 40 55 44 4BTA3.9-G2 4.L E
PF-DC66-1 60 48 66 52.8 4BTA3.9-G2 4.L E
PF-DC66-2 60 48 66 52.8 4BTA3.9-G11 4.L E
PF-DC69 62.5 50 68.75 55 4BTA3.9-G2 4.L E
PF-DC80 72.5 58 80 64 4BTA3.9-G11 4.L E
PF-DC88 80 64 88 70.4 6BT5.9-G2 6.L E
PF-DC110 100 80 110 88 6BT5.9-G2 6.L E
PF-DC124 112.5 90 123.75 99 6BTA5.9-G2 6.L E
PF-DC138 125 100 137.5 110 6BTAA5.9-G2 6.L E
PF-DC165-1 150 120 165 132 6BTAA5.9-G12 6.L E
PF-DC165-2 150 120 165 132 6CTA8.3-G2 6.L E
PF-DC206 187.5 150 206.25 165 6CTA8.3-G2 6.L E
PF-DC220 200 160 220 176 6CTAA8.3-G2 6.L E
PF-DC248 225 180 247.5 198 6LTAA8.9-G2 6.L E
PF-DC275 250 200 275 220 6LTAA8.9-G2 6.L E
PF-CC303 275 220 302.5 242 NTA855-G1A 6.L E
PF-CC330 300 240 330 264 MTAA11-G3 6.L E
PF-CC344-1 312.5 250 343.75 275 MTAA11-G3 6.L E
PF-CC344-2 312.5 250 343.75 275 NTA855-G1B 6.L E
PF-CC344-3 312.5 250 343.75 275 NTA855-G2 6.L E
PF-CC385-1 350 280 385 308 NTA855-G2A 6.L E
PF-CC385-2 350 280 385 308 NTA855-G4 6.L E
PF-CC385-3 350 280 385 308 QSM11-G2 6.L ECU
PF-CC413 375 300 412.5 330 NTAA855-G7 6.L E
PF-CC440 400 320 440 352 NTAA855-G7A 6.L E
PF-CC495 450 360 495 396 KTA19-G3 6.L E
PF-CC550-1 500 400 550 440 KTA19-G3A 6.L E
PF-CC550-2 500 400 550 440 KTA19-G4 6.L E




Genset details:



Water Cooled Compact Design Cummins Power Generator Hotel Diesel Generators 0







Company Details:



JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
