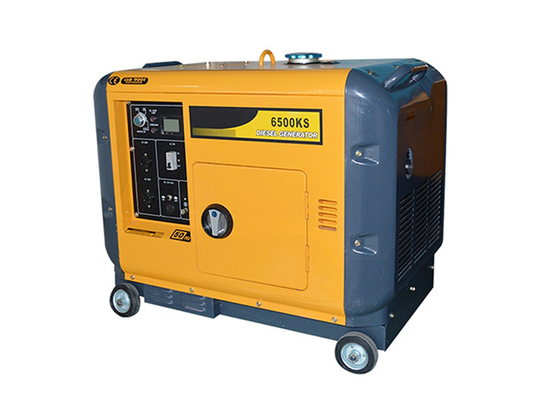

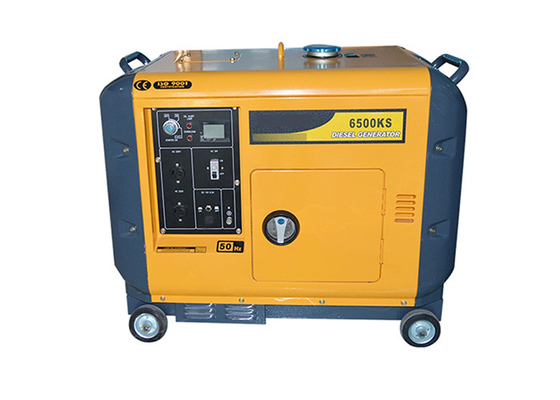

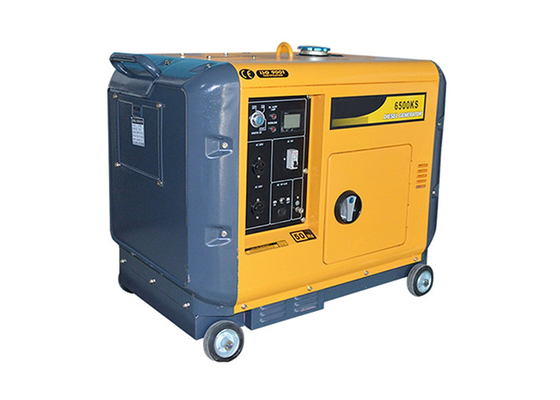

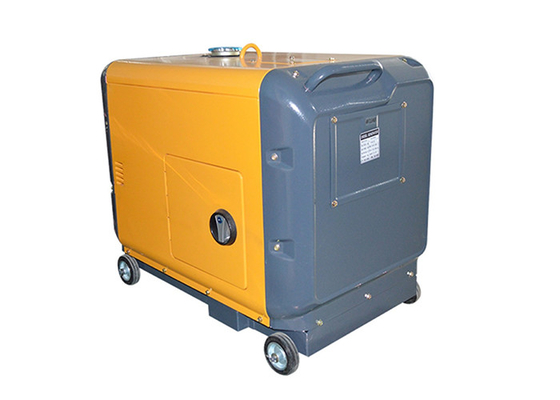

Super Silent Generator in Kipor type:
Noise Level: 67db/7m
With digital control panel
Different types of socket for EU, AMERICA, AU, AFRICA, MIDDLE EAST, ASIA, etc
Different color is available
| Genset | Model No. | PD6700KS (Super Silent type) |
| Rated frequency (Hz) | 50/60 | |
| Rated voltage (v) | 230 120/240 | |
| Rated output power(kW) | 5.0 6.0 | |
| Rated rotation speed(rpm) | 3000/3600 | |
| DC Output | 12v 8.3A | |
| Power factor | 1 | |
| Phase number | Single phase | |
| Noise level dB@7m | 68 | |
| Overall dimension (L*W*H)MM | 950x560x750 | |
| Net weight | 165 | |
| Engine | Engine type | 186FAE |
| Structure type | Single cylinder , in lined 4 stroke, air cooled direct injection | |
| Bore * stroke mm | 86X72 | |
| Displacement ml | 418 | |
| Compression ratio | 19:01 | |
| Rated output(kw/rpm) | 5.9/3000 6.5/3600 | |
| Lubrication system | pressure splashed | |
| Lue oil brand | Above CD SAE 10W 30 15W 40 | |
| Staring system | 12V Electric starter | |
| Starting motor capacity | 12V 0.8KW | |
| Charging generator capacity | 12V 3A | |
| Battery capacity | 12V 36AH | |
| Fuel consumption rate(g/kw.h) | 3000rpm 276,3600rpm 285 | |
| Fuel type | Diesel 0# or 10# 35# | |
| Fuel tank capacity (L) | 15 | |
| Continuous Running time(H) | 8 |
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway
2. Household: personal use for house, camping, party, etc
3. Island, Desert or any place without electricity
4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
5. Emergency power generation.
6. Where couldnt stop power need emergency.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. 15 days delivery time
4. Produce engines / canopy and assemble by ourselves.
5. New design , competitive price
6. Super silent , eacy for maintance
7. Fashion canopy design
