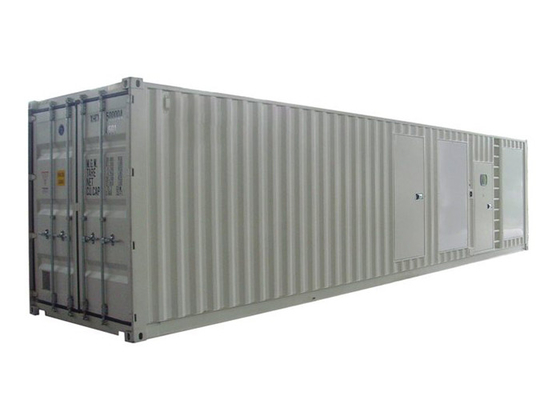

Container Type Diesel Water Cooled Generator Soundproof 1250KVA / 1000KW

1 SET
MOQ
Negotiation
قیمت
Container Type Diesel Water Cooled Generator Soundproof 1250KVA / 1000KW
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
Output Power: 1250KVA /1000KW
Frequency: 50/60HZ
Voltage: 220/400V 230/430 240/415 optional
Engine: Perkins
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek for optional
Controller: Deepsea 6020/7320
MCCB: ABB or Delixi
Cooling system: Water cooled
Noisel level: 85dB at 7 meters
ATS: Optional
برجسته:

open type genset,water cooled generator

,

water cooled generator

اطلاعات اولیه
Place of Origin: Jiangsu,China
نام تجاری: GPRO
گواهی: ISO,CE , CO, FORM E Certification
Model Number: PF-P1375
پرداخت
Packaging Details: Plywood or Plastic packing
Delivery Time: 25 working days
Payment Terms: L/C, T/T
Supply Ability: 500 Set / Month
توضیحات محصول

UK Perkins container type generator 800kw to 1500kw soundproof big power genset





MODEL

PF-P1375

PRIME POWER (KVA/KW) 1250/1000
STANDBY POWER(KVA/KW) 1375/1100
Rated voltage(V) 400/230
Rated speed(rpm) 1500
Rated frequency(Hz) 50
Power factor 0.8
Ambient temperature(°C) 40
Altitude(m) 1000
Connection type 3 phase 4 wires
ENGINE MANUFACTURER

UK Perkins brand

Model 4012-46TWG2A
Rated Power(kW) 1000
No. of cylinders & configuration 3 vertical in-Line
Method of operation 4-stroke
Speed regulation Mechanically governor
Starting system DC 12V Electronic start
Cooling method Closed-circuit cooling system
Total displacement(L) 3.3
Compression ratio 17.25:1
Bore×Stroke(mm) 105×127
100% Load fuel consumption(L/h) ≤13.9
ALTERNATOR MANUFACTURER STAMFORD
Number of Phase 3
Connection Type 3Phase and 4Wires
Number of Bearing 1
Power Factor 0.8
Protection Grade IP23
Terminal 12
Winding/ Pitch 100% Copper 2/3 Pitch
Cooling Fan Cast alloy aluminum
Exciter Type Brushless, Self-Exciting
Insulation Class, Temperature Rise H/H
Telephone Influence Factor( TIF) TIF <50 / THF<2%
Total Harmonic TGH/THC <1.5% at no load / <5% at load
Voltage Regulation, Steady State ≤±1%
Sustained Short-Circuit Current 300%(3 in):10s
CONTROL SYSTEM DSE SERIES



Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Features and benefits

1.Tightly structure, excellent design and craft

2.Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

3.Self-diagnostic capability simplifies troubleshooting

4.LCD display shows system status and setup information

5.Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

6.Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

7.Enclosed muffler for added quietness

8.Service and maintenance accessible through easy-latch side service door

Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



If have any questions, please contact us. Your inquiry would be appreciated.
